SS-Model

General Description

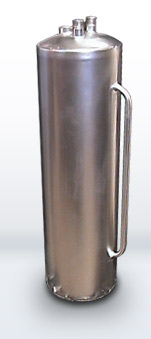

The SS-Model Softener is compact and portable. It is s down-flow design with no moving parts. The tank is constructed of T-304 stainless steel of low carbon content with heli-arc welded top and bottom and fusion seam-welded shell. The top has three openings: one 1 1/2” threaded hole for filling the tanks and two 1” threaded holes in the top of the inlet and outlet tank connectors.

The complete SS-Model assembly includes: two 1” tank connectors; two plastic distributors* - one short (inlet), on long (outlet); with outlet distributor seal rings; two distributor springs; two 1” plugs with “O” rings; one 1 1/2” plug with “O” ring; two 3/4” yoke assemblies with “O” rings.

*Stainless Steel distributors (short and long) are available for hot water applications.

Features

  • ¾” or 1” Full flow tank connectors
  • Heavy-duty construction
  • Stainless steel construction
  • “O” ring seals
  • High flow rate
  • Compact
  • Quick disconnect fittings
  • Bar on side for easy handling

Click Here for SS-Model Specifications
