Culligan Style

General Description

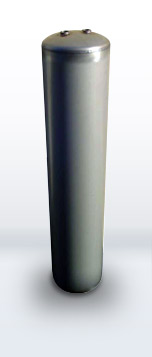

9” x 44” PORTABLE EXCHANGE TANK

Product Classification: Portable Exchange

Product Name: SC944

Product Description:

  • Tanks are made of 304-2B Stainless Steel.
  • Heliarc & Short Arc Welding processes used with 316 stainless wire.
  • The top and bottom heads are 12 gauge (.105) thicknesses.
  • The side shells are 9 inches in diameter &14 gauge (.078) thickness.
  • The top head has two ¾ female pipe fittings 3 inches apart on center.
  • The bottom head is inverted allowing for use on hook type trucks.
  • These tanks have been hydrostatically tested at approximately 3 times standard
    household pressure.
  • The overall height is 44 1/8 inches

Industry specifications: Meets ANSI/NSF 42 (structure & material safety).

Click Here for Culligan Style Specifications
