General Description

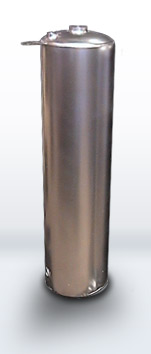

The SM-Model Softener is compact, portable & durable. It is a down-flow design with no moving parts. The tank is constructed of T-304 stainless steel. Top and bottom heads are mig welded using a semi automated Circumference welder. The vertical seam weld is done by heliarc on a semi automated seam welder. Fittings are welded by hand using the heliarc process.

The top has two openings: one 1-1/2” threaded coupling for filling the tank and one 3/4” threaded coupling for the inlet riser & connector. The bottom side has another 3/4" coupling for the riser pipe and outlet connector.

*Stainless Steel distributors (short and long) are available
for hot water applications.


  • ¾” flow tank connectors
  • Heavy-duty construction
  • Stainless steel construction
  • “O” ring seals
  • High flow rate
  • Compact
  • Quick disconnect fittings
  • Plastic distributors can be easily removed from tank to facilitate cleaning

Click Here for SM-Model Specifications
